Calculations

  • Updated

Ecobot Collector works out the USACE vegetation and hydrology tests for you as you record a wetland point, saving about 20 minutes per point. This article explains which calculations Ecobot does and how to see them.

What Ecobot calculates

Each result is filled in from the species, cover and indicators you record, and updates as you change them.

See the vegetation calculations

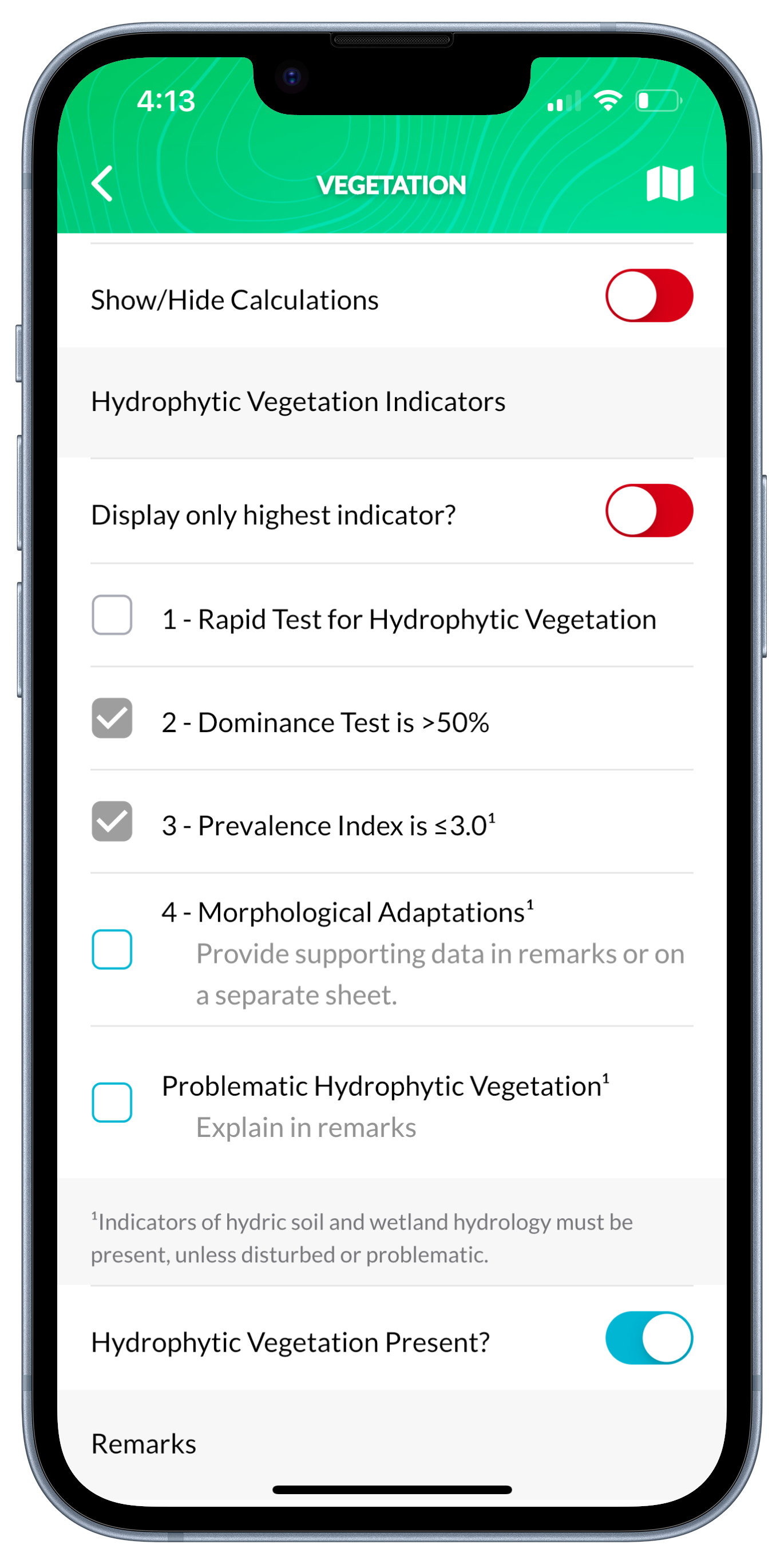

On the Vegetation screen, turn on Show/Hide Calculations to see how each test was worked out. Under Hydrophytic Vegetation Indicators, the tests your data meets are checked for you.

The Vegetation screen in Ecobot Collector, with the Show/Hide Calculations switch highlightedHydrophytic Vegetation Indicators in Ecobot Collector, with 2 - Dominance Test is >50% checked for you

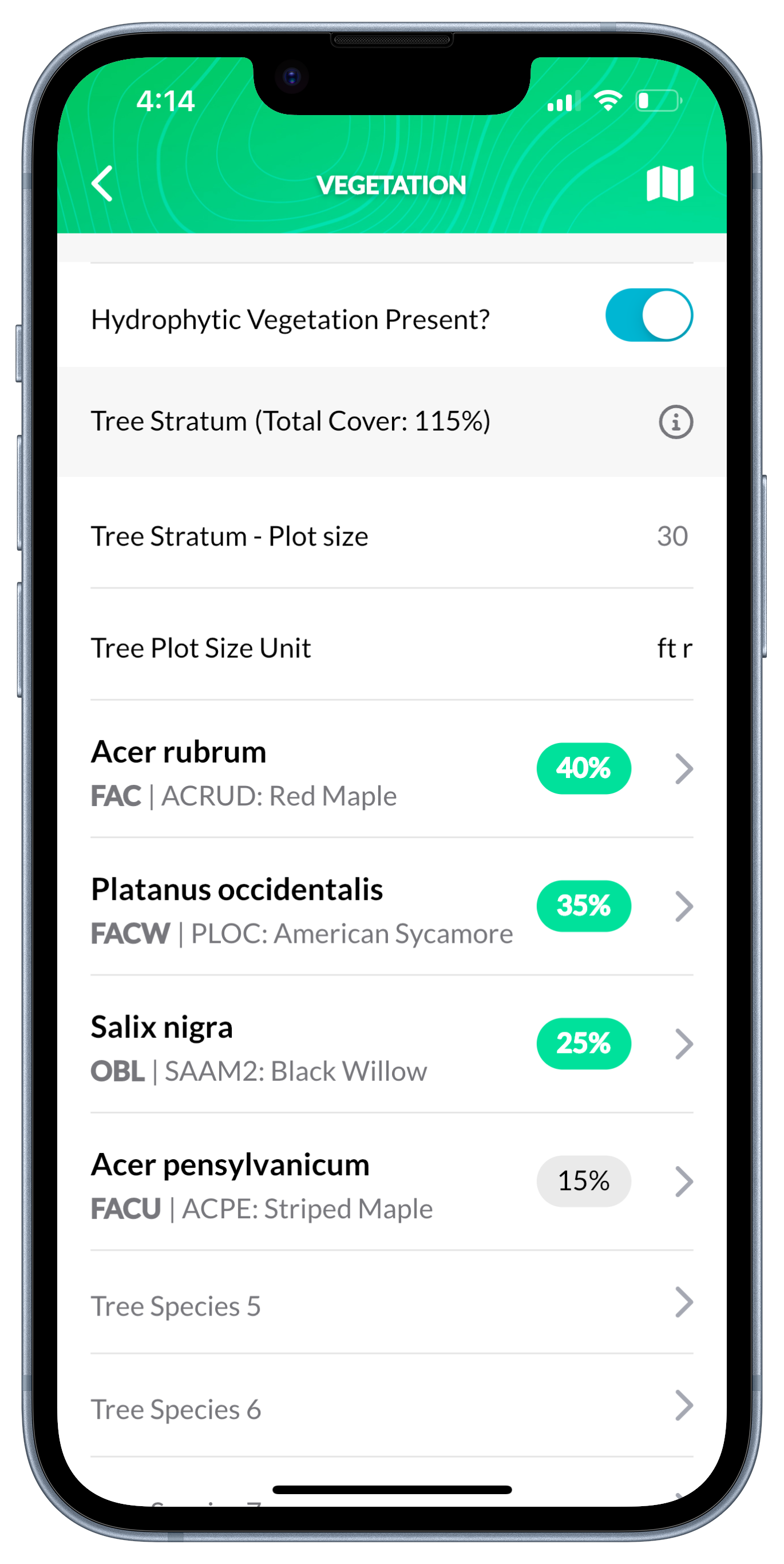

In each stratum, the cover of each dominant species is highlighted in green.

The tree stratum on the Vegetation screen in Ecobot Collector, with the dominant species' cover highlighted in green

See the hydrology calculation

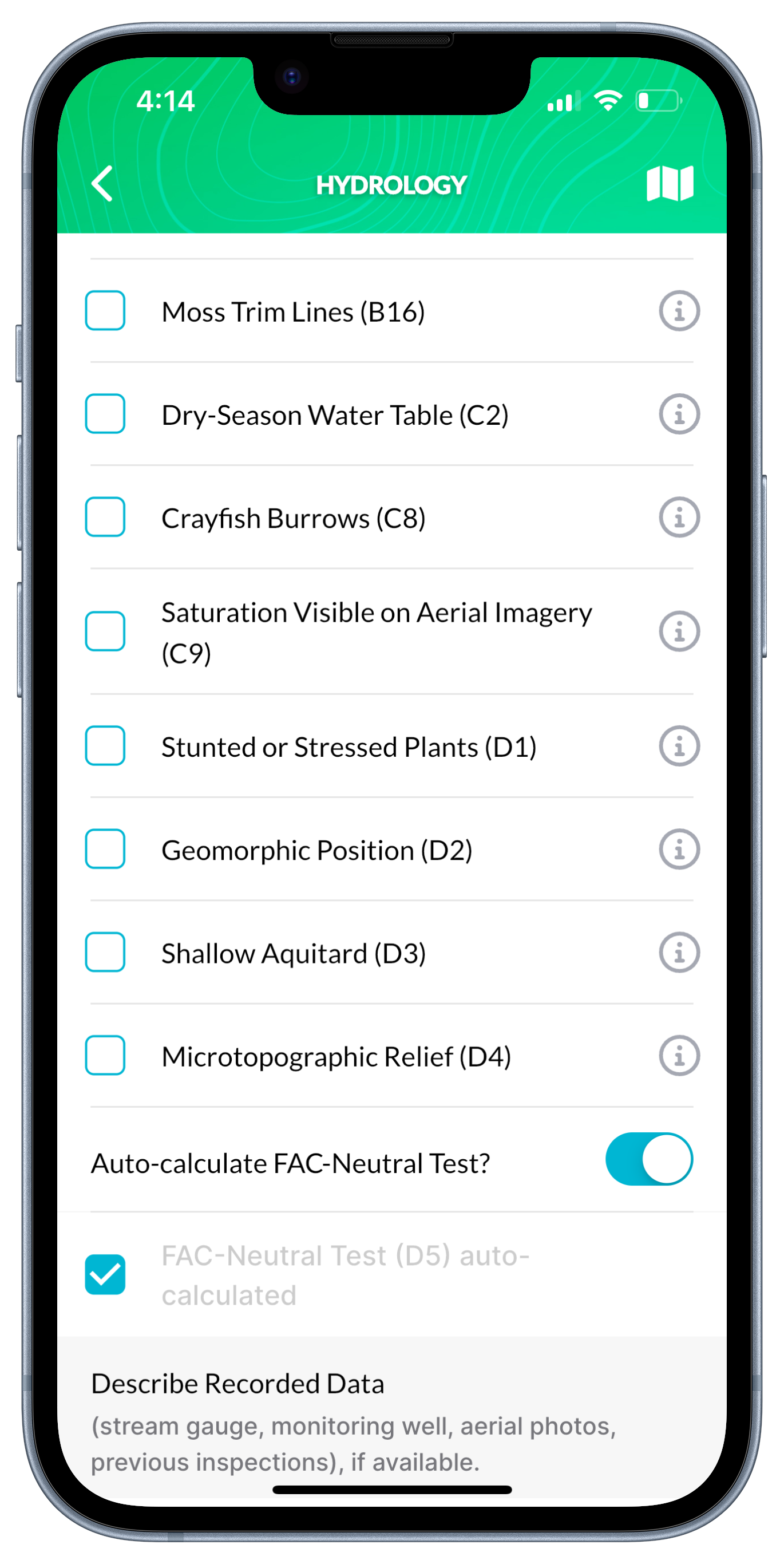

On the Hydrology screen, Auto-calculate FAC-Neutral Test? is on by default, and Ecobot checks FAC-Neutral Test (D5) when your vegetation data meets it. To decide it yourself instead, turn the switch off.

The Hydrology screen in Ecobot Collector, with the Auto-calculate FAC-Neutral Test? switch highlighted

For more on recording each section, see Wetland determination: vegetation and Wetland determination: hydrology.
