The NC DWQ Stream Identification Form, version 4.11, classifies a stream as ephemeral, intermittent or perennial. It scores the stream's geomorphology, hydrology and biology, and the total decides the class. You can fill it out in Ecobot Collector in the field, or in Ecobot Manager, and download the completed form as a PDF.
Fill out the form in Collector

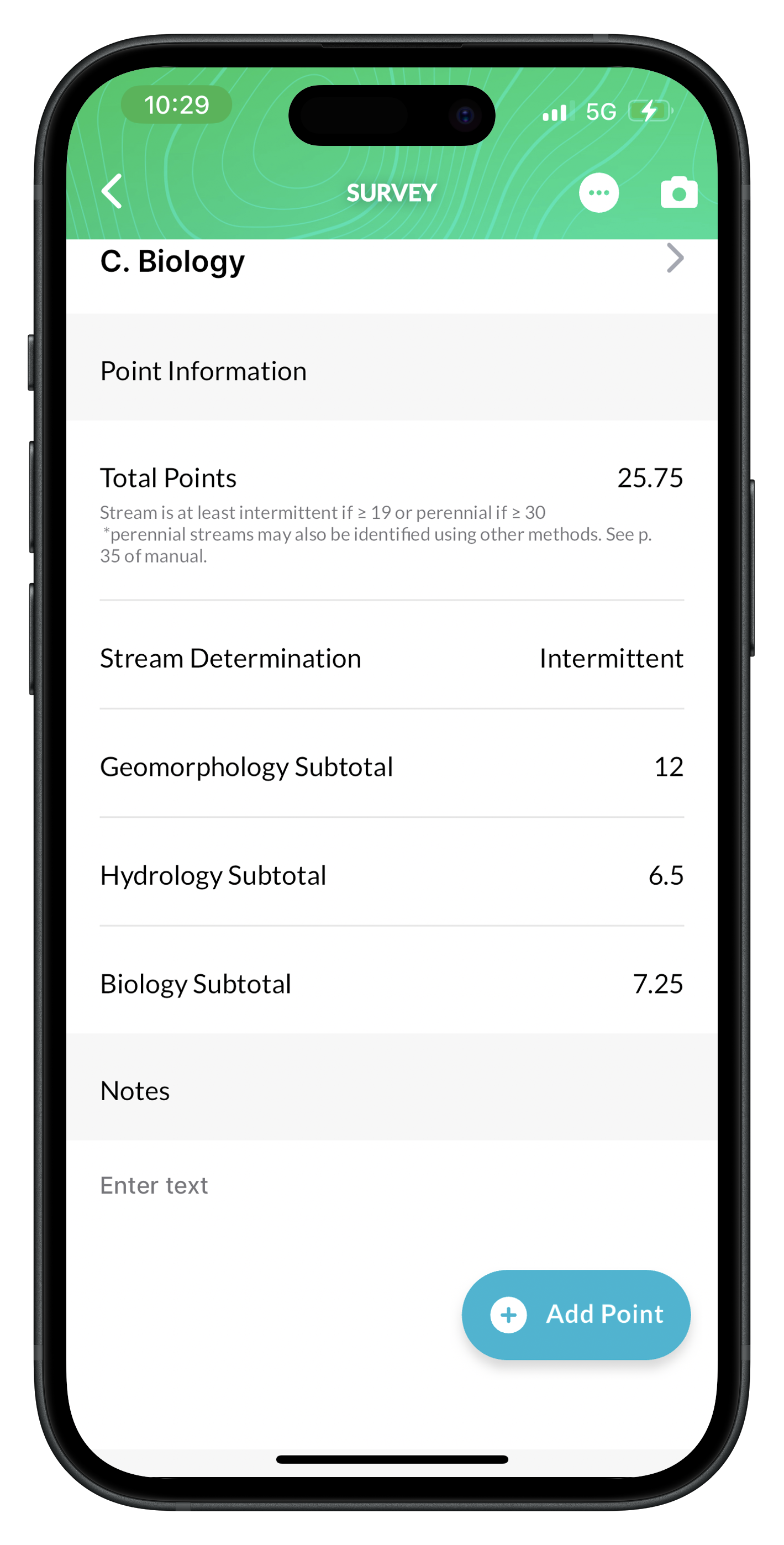

For each question, use the selection wheel to choose Absent, Weak, Moderate or Strong. Collector adds up each section's score and the total for you.
The form has three sections:
- Geomorphology: the stream's physical form, such as channel structure, sediment type and floodplain features.
- Hydrology: signs of how often water flows, such as baseflow, soil evidence of high water and sediment on vegetation.
- Biology: signs of life, such as aquatic animals, plant roots and algae. More, and more varied, life usually points to a perennial stream.
How the stream is classified
| Total score | Class | Flow |
|---|---|---|
| Under 19 | Ephemeral | Dry most of the year |
| 19 to 29 | Intermittent | Seasonal |
| 30 or more | Perennial | Year-round |
Fill out the form in Manager
- Open the survey and check it out.
- On the Points tab, select the point's name.
- Choose an answer for each question. Each answer shows its score, such as Moderate - 2. To move around the form, select Site, Summary, Geomorphology, Hydrology, Biology or Notes at the top.
- Select Save data at the bottom right.
The Summary section shows the total points and the stream determination, and each section shows its subtotal. They update as you answer.

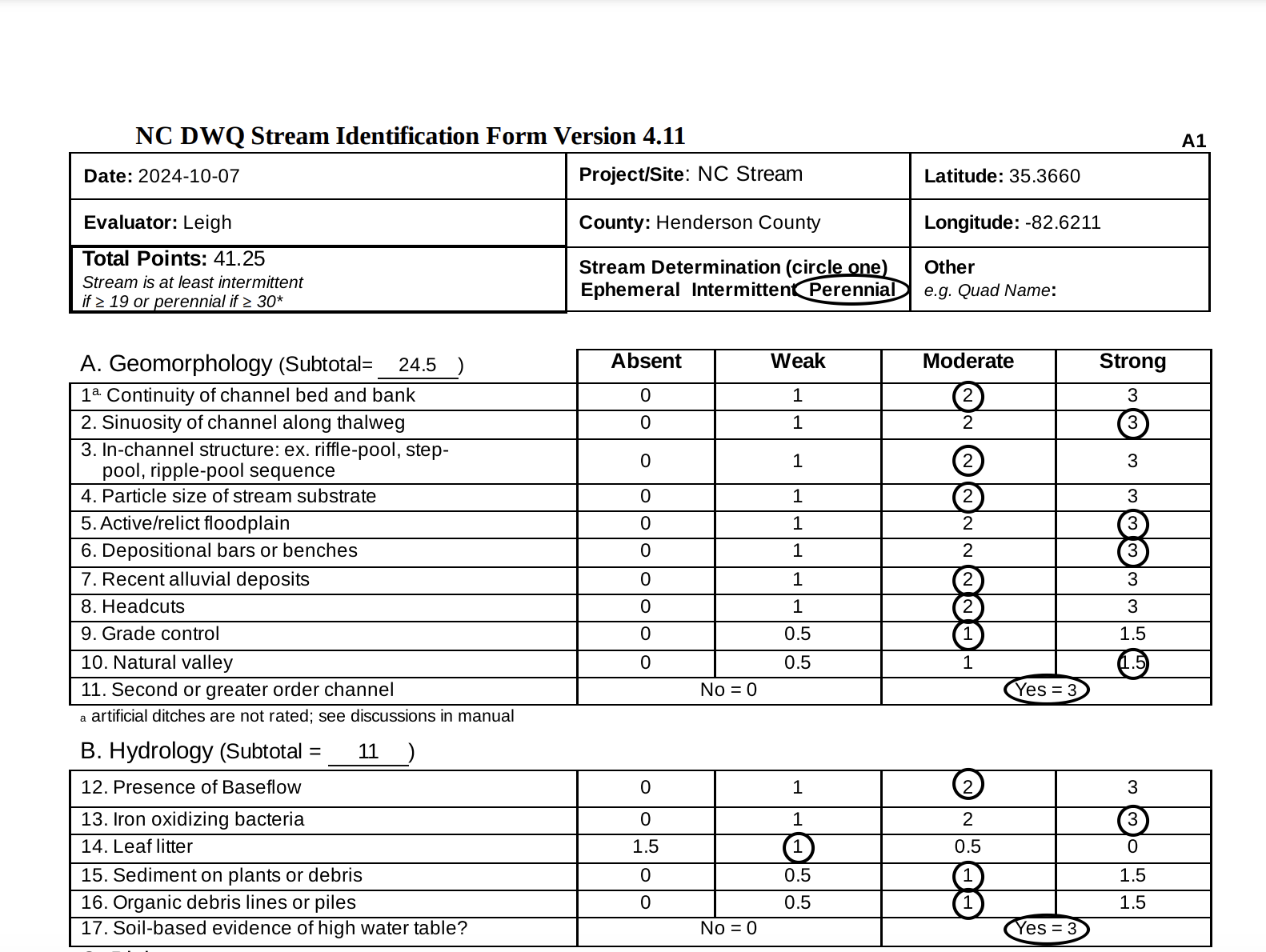

To download the completed form, select the PDF icon on the point's row on the Points tab, or download the survey PDF from the Deliverables tab.
Supporting images
Most professionals now submit a photo log instead of a hand sketch. Ecobot's photo log pairs well with the form PDF. See Photos in Ecobot Manager.
If your USACE regulator prefers or requires a hand sketch, let us know at support@ecobot.com. We welcome feedback on this form.
